Outdoor LED display: P2.97 to P16 cabinets
Four cabinet families for billboards, building facades and stadium perimeter screens, from P2.97 to P16.

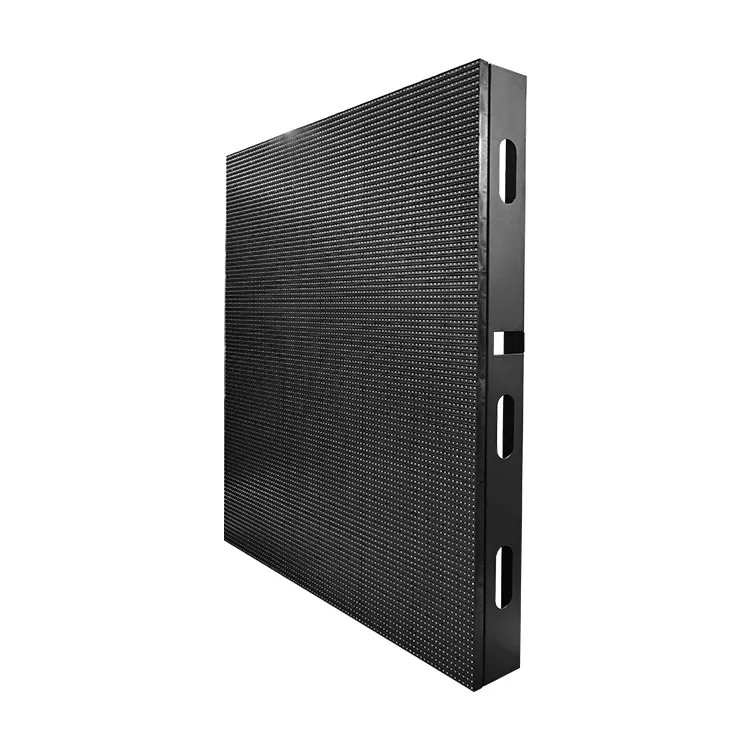

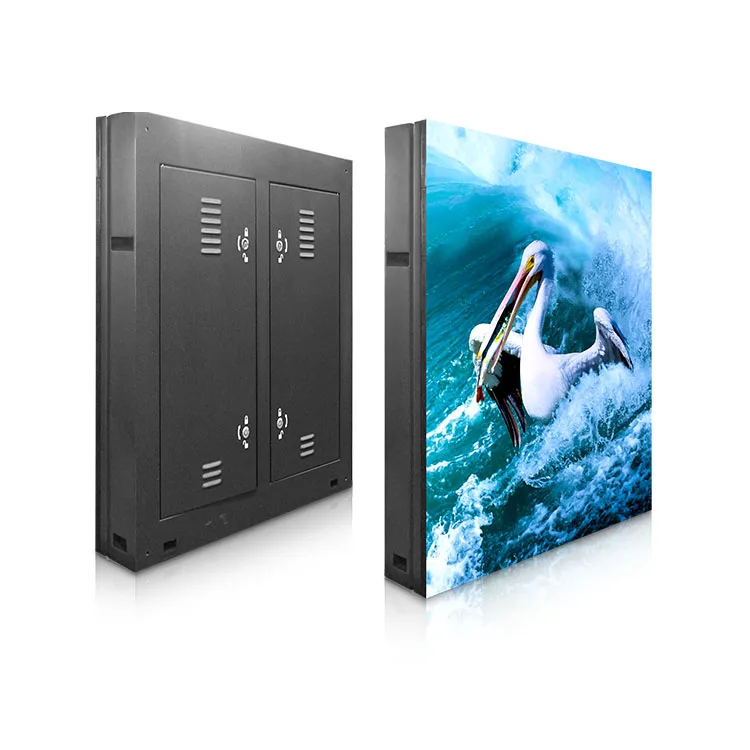

Outdoor LED display specifications
| Model | P2.97 | P3.91 |
|---|---|---|
| Pixel Pitch(mm) | 2.97 | 3.91 |
| Pixel Composition | 1R1G1B | 1R1G1B |
| LED Type | SMD | SMD |
| Pixel density(dots/m²) | 112,896 | 65,536 |
| Cabinet Size(mm) | 500x500 | 500x500 |
| Cabinet Resolution(dots) | 168x168 | 128x128 |
| Module Size(mm) | 250x250 | 250x250 |
| Module Resolution(dots) | 84x84 | 64x64 |
| Cabinet Material | Die-casting Aluminum | |
| Cabinet Weight(kg) | 8.5 | 8.5 |
| Brightness(cd/m²) | 5,000 | 5,000 |
| Power Max./Avg.(W/㎡ ) | 1000/450 | 875/300 |
| Refresh Rate (Hz) | 1920-3840 | |
| Gray Scale(bit) | 12-16 | |
| Input Voltage | AC100~240V/50~60Hz | |
| Working Temperature(℃) | -30℃~60℃ | |
| Installation/Maintenance | Front / Rear | |
| Life Span | 100,000 hours | |
| Mtbf | >10,000 hours | |
| Model | P6.67 | P8 | P10 |
|---|---|---|---|
| Pixel Pitch(mm) | 6.67 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD2727 | SMD2727 | SMD2727 |
| Pixel density(dots/m²) | 22,477 | 15,625 | 10,000 |
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 |
| Cabinet Resolution(dots) | 144x144 | 120x120 | 96x96 |
| Module Size(mm) | 320x320 | 320x320 | 320x320 |
| Module Resolution(dots) | 48x48 | 40x40 | 32x32 |
| Cabinet Material | Iron / Aluminum | ||
| Cabinet Weight(kg) | 32.5KG(Iron) | ||
| Power Max./Avg.(W/㎡ ) | 800/300 | 800/300 | 800/300 |
| Refresh Rate (Hz) | 1920-3840 | ||
| Gray Scale(bit) | 12-16 | ||
| Input Voltage | AC100~240V/50~60Hz | ||
| Working Temperature (℃) | -30℃~60℃ | ||
| Installation/Maintenance | Front / Rear | ||
| Life Span | 100,000 hours | ||
| Mtbf | >10,000 hours | ||
| Model | P6 | P8 | P10 | P10 | P12 | P15 | P16 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch(mm) | 6 | 8 | 10 | 10 | 12 | 15 | 16 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD2727 | SMD3535 | SMD3535 | DIP 346 | DIP 346 | DIP 346 | DIP 346 |
| Pixel Density(dots/m²) | 27,777 | 15,625 | 10,000 | 10,000 | 6,944 | 4,444 | 3,906 |
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Resolution(dots) | 160X160 | 120x120 | 96x96 | 96x96 | 80x80 | 64x64 | 60x60 |
| Module Size(mm) | 240X240 | 240X240 | 240X240 | 240X240 | 240X240 | 240X240 | 240X240 |
| Module Resolution(dots) | 40x40 | 30x30 | 24x24 | 24x24 | 20x20 | 16x16 | 15x15 |
| Cabinet Material | Iron / Aluminum | ||||||
| Cabinet Weight(kg) | around 45 kg/m² (Iron) ; around 32 kg/m² (Aluminum) | ||||||
| Brightness(cd/c) | 6,000 | 6,000 | 6,000 | 7,500 | 7,500 | 7,500 | 7,500 |
| Power Max./Avg.(W/m²) | 800/300 | 750/300 | 780/300 | 550/200 | 550/200 | 550/200 | 550/200 |
| Refresh Rate(Hz) | 1920~3840 | ||||||
| Gray Scale(bit) | 12 ~ 16 | ||||||
| Input Voltage | AC100~240V/50~60Hz | ||||||
| Working Temperature | -30℃~60℃ | ||||||
| Installation/Maintenance | Front/ rear | ||||||
| Life Span | 100,000 hours | ||||||
| Mtbf | >10,000 hours | ||||||
| Model | P3 | P4 | P5 | P6 | P8 | P10 |
|---|---|---|---|---|---|---|
| Pixel Pitch(mm) | 3 | 4 | 5 | 6 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density(dots/m²) | 111,111 | 62,500 | 40,000 | 27,777 | 15,625 | 10,000 |
| Cabinet Size(mm) | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Resolution(dots) | 320x320 | 256x256 | 192x192 | 160x160 | 128x128 | 96x96 |
| Module Size(mm) | 192x192 | 256x128 | 320x160 | 192x192 | 256x128 | 320x160 |
| Module Resolution(dots) | 64x64 | 64x32 | 64x32 | 32x32 | 32x16 | 32x16 |
| Cabinet Material | Iron / Aluminum | |||||
| Cabinet Weight(kg) | around 45 kg/m² (Iron) ; around 32 kg/m² (Aluminum) | |||||
| Brightness(cd/c) | 5,000 | 5,500 | 6,000 | 6,000 | 6,000 | 6,000 |
| Power Max./Avg.(W/m²) | 1100/300 | 800/300 | 850/300 | 850/300 | 800/300 | 800/300 |
| Refresh Rate(Hz) | 1920~3840 | |||||
| Gray Scale(bit) | 12 ~ 16 | |||||
| Input Voltage | AC100~240V/50~60Hz | |||||
| Working Temperature | -30℃~60℃ | |||||
| Installation/Maintenance | Rear | |||||
| Life Span | 100,000 hours | |||||
| Mtbf | >10,000 hours | |||||
Choosing the pitch
P2.97 and P3.91 on 500 x 500 mm die-cast cabinets suit close outdoor viewing such as plazas and storefronts. P6 to P10 on 960 x 960 mm cabinets suit roadside and rooftop screens. P12 to P16 DIP modules suit long-distance signs.
Weight and structure
The 960 x 960 mm families list about 45 kg per square meter in iron and about 32 kg in aluminum. Send the structure limits early so the cabinet material can be chosen.
Specify these in your inquiry
- Indoor or outdoor, and the closest viewing distance.
- Screen width and height, or total area.
- Fixed installation or rental, front or rear service access.
- Control system or receiving card preference.
- Mains voltage at the site.
Choosing an outdoor led display from the four cabinet families
Our outdoor led display line spans four cabinet families, so start with viewing distance and structure. The 500 x 500 mm die-cast aluminum cabinets at P2.97 and P3.91 are dense at 112,896 and 65,536 dots per square meter. They suit plazas and storefronts where people walk close. The 960 x 960 mm iron or aluminum cabinets cover P6.67, P8 and P10 with SMD2727 LEDs, and a wider range from P6 to P16 with SMD or DIP 346 LEDs. DIP modules push brightness to 7,500 cd/m² for long-distance signs.
Weight matters before you buy. The 960 x 960 mm iron cabinets list about 45 kg per square meter; aluminum drops that to about 32 kg. Send us your structure limits early so we can pick the right cabinet material. Every outdoor model accepts AC100~240V and works from -30℃ to 60℃. Front or rear service access depends on the family, so tell us how you will reach the screen after installation.
If you are comparing rows, do not assume a smaller pixel pitch is always better. A P16 billboard seen from a highway wastes money versus a P10 sign. Ask us for the pixel density, brightness and power draw of each candidate before you commit.
Writing the RFQ for an outdoor led screen
Procurement teams often send us a one-line request and we have to ask for the rest. You can shorten that loop by specifying five things. First, indoor or outdoor and the closest viewing distance. Second, screen width and height or total area. Third, fixed installation or rental, and front or rear service. Fourth, your control system or receiving card preference. Fifth, mains voltage at the site.
Our standard outdoor led screen refresh rates run 1920 to 3840 Hz with 12 to 16 bit gray scale. If your content is high-speed video or you need camera-friendly performance, state that in the RFQ.
Do not forget the structure. A rooftop billboard needs different steel than a wall-mounted storefront sign. The same goes for power distribution: we supply the display, you supply the feed.
Integration limits and how this category differs from our indoor or rental lines
We make the display cabinet, modules, and the receiving card interface. We do not make the video processor, the content management software, or the mounting steel. Our outdoor led display manufacturer role ends at the cabinet boundary.
Compare our indoor LED display line: indoor cabinets are thinner, lighter, and built for lower brightness. Outdoor cabinets need weather sealing, higher brightness to fight sunlight, and thermal design for direct sun. Do not reuse an indoor screen outside.
Our rental LED display cabinets are designed for fast rigging and truck pack. Outdoor fixed cabinets prioritize weather resistance and long service life. A buyer who needs a screen for a three-day event should look at rental, not outdoor fixed. If you are unsure, tell us the use case and we will point you to the right line.
