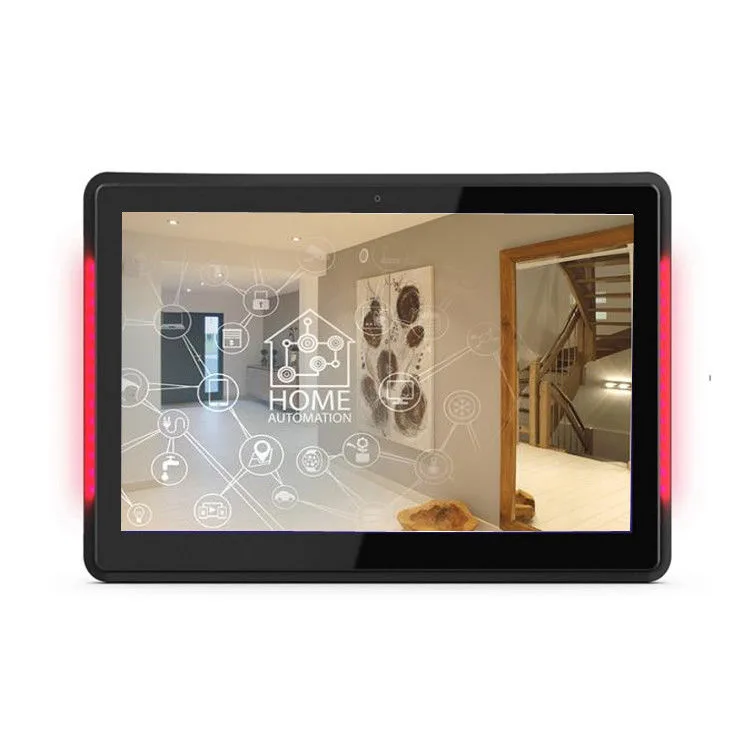

WA1342T: 13.3 inch RK3288 PoE Android tablet
Wall mount. RK3288, Quad-core Cortex A17, 1.6G, Android 5.1/8.1, 2GB + 16GB. OEM and ODM orders accepted.
- Model
- WA1342T
- Screen
- 13.3"
- Chipset
- RK3288, Quad-core Cortex A17, 1.6G
- OS
- Android 5.1/8.1
- RAM + storage
- 2GB + 16GB
- Resolution
- 1920*1080
- PoE
- IEEE802.3at
- Form
- Wall mount
- Minimum order
- 100PCS
WA1342T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| System | |
|---|---|
| CPU | RK3288, Quad-core cortex A17, 1.6G |
| RAM | 2GB |
| Internal Memory | 16GB |
| Operation System | Android 5.1/8.1 |
| Touch Screen | 10-Point capacitive touch |
| Display | |
|---|---|
| Panel | 13.3" LCD panel |
| Resolution | 1920*1080 |
| Active Area | 293.76(H)x165.24mm(V) |
| Display Mode | Normally black |
| Viewing Angle | 85/85/85/85(L/R/U/D) |
| Contrast Ratio | 800 |
| Luminance | 250cd/m² |
| Aspect Ratio | 16:9 |
| Network & Connectivity | |
|---|---|
| WiFi | 802.11b/g/n |
| Ethernet | 100M/1000M ethernet |
| Bluetooth | Bluetooth 4.0 |
| Interfaces | |
|---|---|
| Card Slot | SD card |
| USB | USB host |
| Micro USB | Micro USB OTG |
| USB | USB for serial (RS232 format) |
| RJ45 with POE | RJ45 |
| POE | IEEE802.3at POE+, 25.5W |
| Power Jack | DC power input |
| Earphone | 3.5mm earphone + Microphone |
| Media Playback | |
|---|---|
| Video Format | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 4K |
| Audio Format | MP3/WMA/AAC etc. |
| Photo | JPEG |
| Additional Features | |
|---|---|
| VESA | 75x75mm |
| Speaker | 2*1.5W |
| LED Light Bar | LED light bar RGB |
| NFC | Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Camera | 2.0M/P, front camera |
| Working Temperature | 0-40°C |
| Language | Multi-language |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
