Does the HGN801 support PoE?

The spec table does not list PoE for this model. It has USB Type-C with OTG, USB HOST 2.0, microSD, SIM, and HDMI out. If your deployment needs PoE, ask us about our PoE tablet line or whether a custom SKU is possible.

Can the HGN801 run Google Play services?

We ship Android 9.0 as AOSP by default. Tell us in the RFQ if your app requires GMS, or if you need a custom launcher and open ADB for device management.

What is the IP65 rating on the HGN801?

IP65 means the enclosure is dust tight and protected against low pressure water jets from any direction. It is not rated for immersion. The spec table lists IP65 as the standby protection level, so confirm your exact use case with us before ordering.

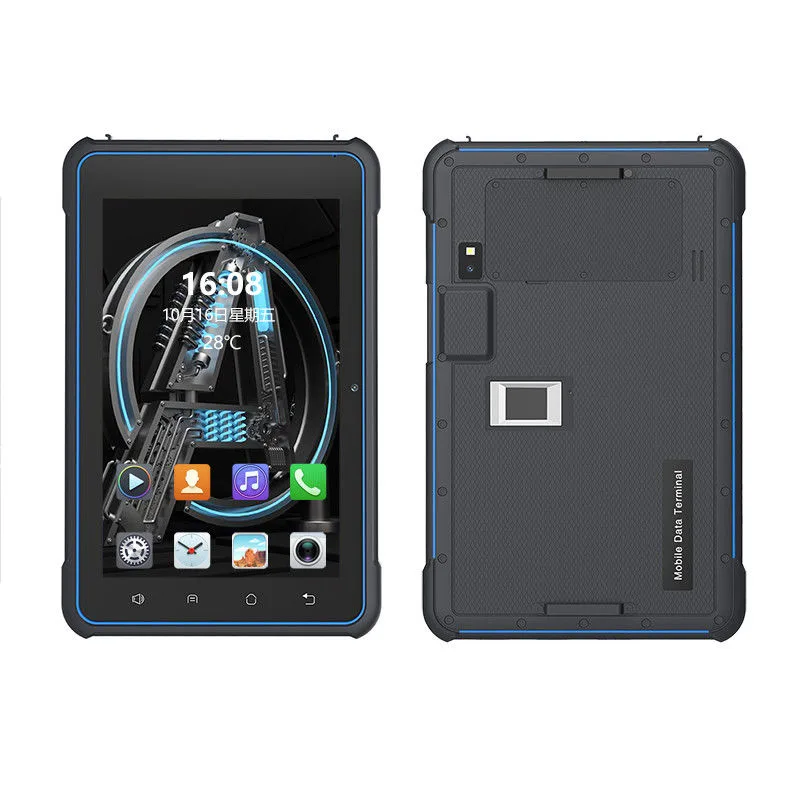

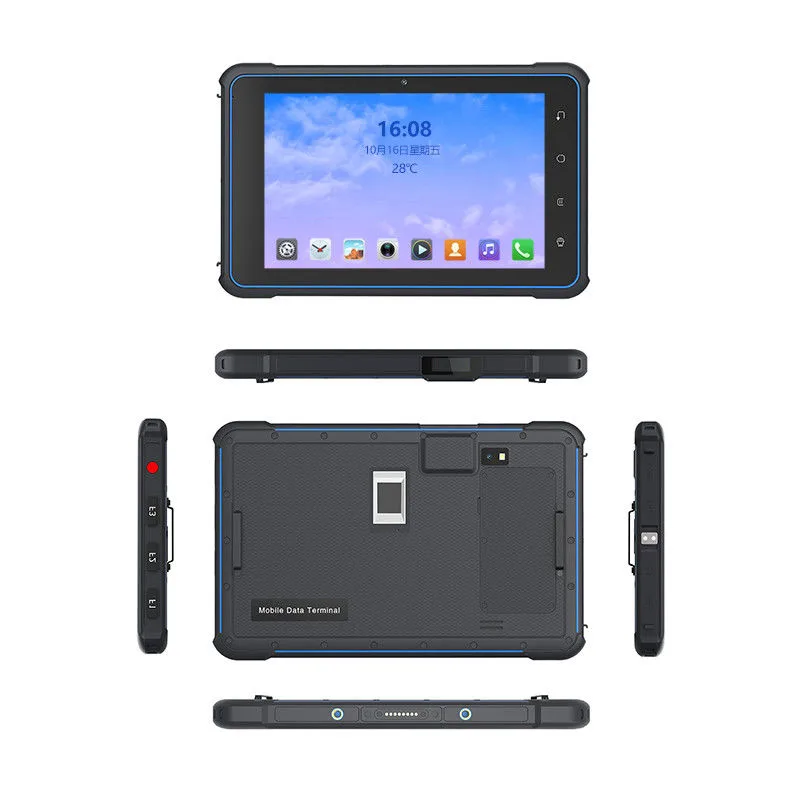

HGN801: 8 inch RK3399 rugged Android tablet with ID reader option

Handheld rugged, IP65. RK3399, Android9.0, 3GB + 32GB. OEM and ODM orders accepted.

Model: HGN801
Screen: 8"
Chipset: RK3399
OS: Android9.0
RAM + storage: 3GB + 32GB
NFC: 13.56MHZ optional
Form: Handheld rugged, IP65
Minimum order: 100PCS

HGN801 specifications

Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.

processor
CPU	RK3399 dual Cortex-A72+four Cortex-A53 core CPU structure, frequency 1.8GHZ
GPU	Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 support AFBC (frame buffer compression)
storage
Running memory	3GB/4GB (optional, 4GB is not currently supported)
Body memory	32GB/64GB (optional, 64GB is not currently supported)
Extended support	128GB
screen
screen size	8" TFT
Display resolution	1. IPS HD8001280； IPS FHD 19201200 (optional, currently does not support FHD)
touch screen	G+G, 10-point touch, COF, I2C interface, interface customization； support active capacitive pen
webcam
Front	5MP/2MP optional
Rear	13MP/5MP/8MP optional
battery
Types of	Two-cell lithium batteries in series, nominal voltage: 7.4V, with fuel gauge
capacity	About 5600mAH 7.4V
System Configuration
Android system	Android9.0
Language	support multi-languauge
Input	Standard Andriod soft keyboard (support third-party handwriting input method/support external hard keyboard)

Fingerprint recognition
ID card recognition
RFID
RFID module	UHF RFID 902-928MHZ optional
NFC
NFC module	13.56MHZ optional
PSAM encryption card
PSAM encryption card	Support 2 PSAM cards optional
QR code scanning
QR code scanning module	One-dimensional & two-dimensional close-range scanning optional
Positioning module
Positioning module	GPS+Beidou/GPS+Glonass/GPS+Beidou+Glonass optional
IP protection level
stand by	IP65

micro SD interface
*1	Support 8G/16G/32G/64G/128G
USB typeC
*1	Support OTG function
USB-A interface
*1	USB HOST2.0
SIM card
*1	stand by
HDMI
*1	HDMI OUT

Configured per order

RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.

Software

Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.

Specify these in your inquiry

RAM and storage tier. Several models list two tiers.
Android version. It follows the chipset, see the OS column.
PoE, NFC, camera, 4G: optional on many models.
GMS or AOSP, launcher lock-down, ADB access.
Housing color and logo method.
LCD products carry a 1 year warranty.

Where the HGN801 fits and where it does not

The hgn801 is an 8 inch RK3399 rugged Android tablet with ID reader option. It is built for field work and indoor duty where drops, dust and water spray are likely. The spec table lists IP65 as the standby protection level, so confirm your exact use case with us before ordering.

We see buyers put it on forklifts, in warehouses and at gate checkpoints. The RK3399 dual A72 plus four A53 cores runs Android 9.0. The 8 inch screen is designed for handheld use.

This is not a wall mount panel. The HGN801 is also not a medical device. Our medical tablets are information terminals, and this model shares that boundary.

What to specify when ordering the HGN801

Start with memory and storage. The spec table lists 3GB RAM and 32GB body memory as standard. 4GB RAM and 64GB storage are listed as optional in the spec table but are not currently available for ordering, so plan for 3GB plus 32GB and a microSD card up to 128GB if you need more room.

Then pick the modules. NFC at 13.56 MHz is optional, as is UHF RFID from 902 to 928 MHz. PSAM slots, a one-dimensional and two-dimensional close range scanner, and GPS plus Beidou or Glonass are all per order. Front camera is 5MP or 2MP, rear is 13MP, 5MP or 8MP. Tell us which combination your app expects.

Specify the OS image you need. We ship Android 9.0 as AOSP without Google Mobile Services by default. If your project needs GMS, a custom launcher, or open ADB, say so in the RFQ. Also state your accessory needs: active capacitive pen support is built in, but the pen itself is not listed as included.

How the HGN801 differs from sibling rugged models

A buyer who compares this to the WA8058T should note the screen size and ID reader option. The HGN801 is an 8 inch handheld, while the WA8058T is a larger rugged tablet. If your workflow is one handed, the HGN801 is the smaller choice.

The HGN801 is the only one of the three with an ID card recognition option in the spec table. That matters for access control or identity verification.

The RK3399 is shared across some of our models, but the HGN801 pairs it with IP65 and a two cell 7.4V battery. That combination is for field use. Ask us for current trade terms.
