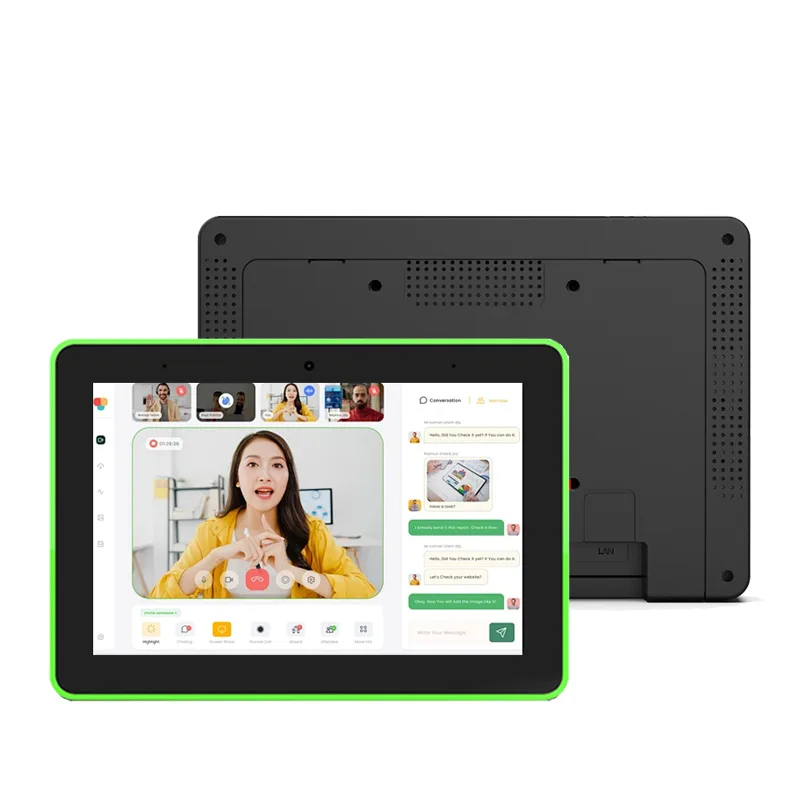

WA8058T: 8 inch wall mount Android tablet with PoE and NFC
Wall mount. Android, 2GB+16GB. OEM and ODM orders accepted.
- Model
- WA8058T
- Screen
- 8"
- OS
- Android
- RAM + storage
- 2GB+16GB
- PoE
- Yes
- NFC
- Yes
- Form
- Wall mount
- Minimum order
- 1
WA8058T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| Size | 8-inch |
|---|---|
| Operating System | Android |
| RAM/ROM | 2GB+16GB |
| Wall Mount | VESA 75*75/100*100 |
| Screen | IPS Touch Screen |
| Panel | LCD |
| POE | Yes |
| NFC | Yes |
| WiFi | Yes |
| Type | Wall Mount Android Tablet with LED Light |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
Where the WA8058T fits and where it does not
The WA8058T is an 8 inch wall mount Android tablet with PoE and NFC. It suits a fixed touchpoint that needs a small screen and a clean install. Think of a room panel, a door sign, or a check-in point. The VESA 75x75 and 100x100 pattern means you can use standard mounts or brackets you already stock.
We do not position this model as a handheld or a desktop terminal. It has no battery in the spec, no desktop stand, and no IP rating listed. If a job needs a rugged outdoor unit or a 10 inch panel with more memory, we would point you to our rugged Android tablets or the 10 inch Android tablet pages. This model is a wall-mount information endpoint.
Say a buyer wants a conference room display outside each door. The WA8058T does that with one cable. Say another buyer wants a kitchen kiosk that gets splashed. This is not that unit. We would rather tell you now than have you spec the wrong model.
What to specify when you order the WA8058T
Send us a short RFQ with the basics. We need the quantity, the target market, and any OS customisation you need. The WA8058T ships with Android and 2GB RAM plus 16GB storage. That is fixed in the standard build. We can preload your APK, set a custom launcher, or open ADB for your development team. Those are OEM services we list on our OEM/ODM page.
NFC is built in. Tell us if you need a specific tag type or reading distance. The reader works at 13.56 MHz, which covers most common tags, but we do not publish a range spec. Test with your tags before you commit to a large order.
The screen is an IPS touch panel. Brightness is not listed on the spec sheet, so we cannot promise a nit figure. If your install faces a window, ask us for a sample and check it in the actual room. We answer inquiries within 24 hours.
How the WA8058T differs from our other wall mount tablets
The WA8058T is our only 8 inch model with both PoE and NFC in the standard spec. The HP1012T is a 10.1 inch unit with a different size class. The WA1036T adds a larger screen but drops NFC. The WL1026T is an L-shape desktop model, not a wall mount. The WH1018T is a wall mount 10.1 inch without NFC. If your project needs an 8 inch panel with one-cable power and data plus contactless reading, the WA8058T is the narrow fit.
We list this model under our meeting room tablet and PoE Android tablet application pages. Those pages show how the same hardware is used in different workflows. The spec table here is the truth. The application pages are context.
