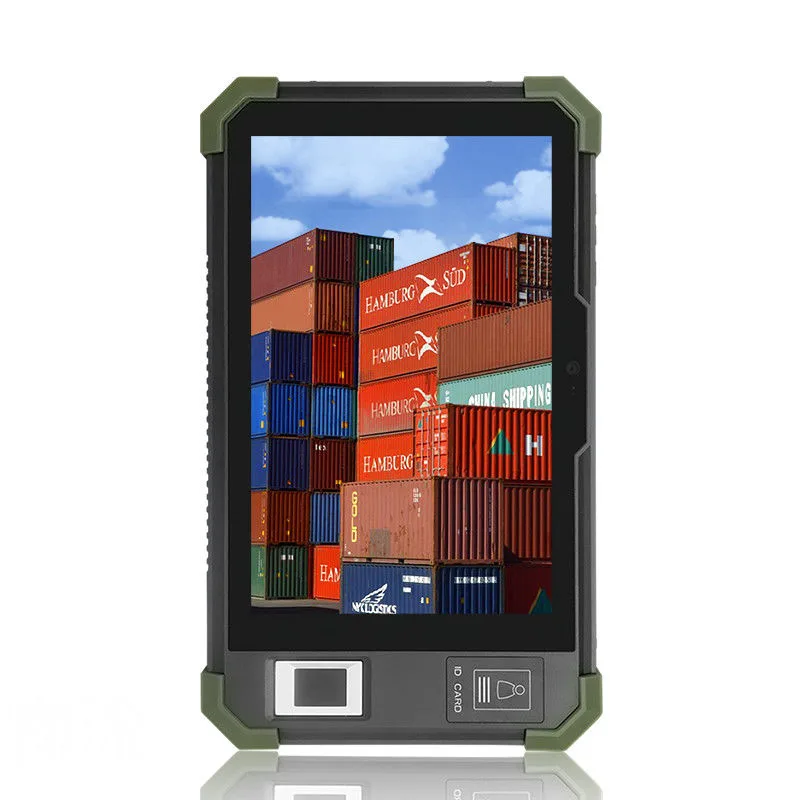

HG805G: 8 inch RK3399 rugged Android tablet, IP65
Handheld rugged, IP65. RK3399, Android9.0, 3GB + 32GB. OEM and ODM orders accepted.
- Model
- HG805G
- Screen
- 8"
- Chipset
- RK3399
- OS
- Android9.0
- RAM + storage
- 3GB + 32GB
- Resolution
- 1280*800
- NFC
- 13.56MHZ optional
- Form
- Handheld rugged, IP65
- Minimum order
- 100PCS
HG805G specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| processor | |
|---|---|
| CPU | RK3399 dual Cortex-A72+four Cortex-A53 core CPU structure, frequency 1.8GHZ |
| GPU | Mali-T864 GPU, support OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 support AFBC (frame buffer compression) |
| storage | |
| Running memory | 3GB/4GB (optional, 4GB is not currently supported) |
| Body memory | 32GB/64GB (optional, 64GB is not currently supported) |
| Extended support | 128GB |
| screen | |
| screen size | 8" TFT |
| Display resolution | 1. IPS HD800*1280； IPS FHD 1920*1200 (optional, currently does not support FHD) |
| touch screen | G+G, 10-point touch, COF, I2C interface, interface customization； support active capacitive pen |
| webcam | |
| Front | 5MP/2MP optional |
| Rear | 13MP/5MP/8MP optional |
| battery | |
| Types of | Two-cell lithium batteries in series, nominal voltage: 7.4V, with fuel gauge |
| capacity | About 5600mAH 7.4V |
| System Configuration | |
| Android system | Android9.0 |
| Language | support multi-languauge |
| Input | Standard Andriod soft keyboard (support third-party handwriting input method/support external hard keyboard) |
| Fingerprint recognition | |
|---|---|
| ID card recognition | |
| RFID | |
| RFID module | UHF RFID 902-928MHZ optional |
| NFC | |
| NFC module | 13.56MHZ optional |
| PSAM encryption card | |
| PSAM encryption card | Support 2 PSAM cards optional |
| QR code scanning | |
| QR code scanning module | One-dimensional & two-dimensional close-range scanning optional |
| Positioning module | |
| Positioning module | GPS+Beidou/GPS+Glonass/GPS+Beidou+Glonass optional |
| IP protection level | |
| stand by | IP65 |
| micro SD interface | |
|---|---|
| *1 | Support 8G/16G/32G/64G/128G |
| USB typeC | |
| *1 | Support OTG function |
| USB-A interface | |
| *1 | USB HOST2.0 |
| SIM card | |
| *1 | stand by |
| HDMI | |
| *1 | HDMI OUT |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
Where the HG805G fits, and where it does not
The HG805G is an 8 inch RK3399 rugged Android tablet. Its IP65 rating suits dusty or wet work areas where water sprays are occasional, not continuous immersion. The two-cell 7.4V battery with fuel gauge gives useful runtime for shift work, and the RK3399 dual Cortex-A72 plus quad A53 handles typical Android apps without a fan.
We do not claim this tablet for underwater use, high-pressure washdown, or environments with corrosive chemicals. The IP65 rating covers protection against low-pressure jets and dust ingress, not steam or solvents. If your site uses alcohol wipes heavily, specify that in the RFQ so we can confirm gasket materials.
A buyer who needs a bigger screen should look at 10 inch Android tablets or the HP1012T. A buyer who needs a fixed wall mount in a meeting room should check meeting room tablets. The HG805G is a handheld field device, not a kiosk.
What to specify when ordering the HG805G
Start with the base configuration: 3GB running memory and 32GB body memory. The spec table lists 4GB and 64GB as optional, but note that we do not currently support those upgrades. Extended storage via micro SD up to 128GB is available, and we support 8G through 128G cards.
Then decide which optional modules you need. NFC at 13.56MHz, UHF RFID at 902-928MHz, PSAM encryption cards, QR code scanning, and positioning modules are all per-order. Choose GPS+Beidou, GPS+Glonass, or the triple combo. Tell us the exact reader or scanner brand and model if you have a preference, otherwise we use our standard modules.
For cameras, the front is 5MP or 2MP, and the rear is 13MP, 5MP, or 8MP. If your app does barcode scanning, the optional close-range one-dimensional and two-dimensional scanner is separate from the camera. Specify Android 9.0 and whether you need open ADB or a custom launcher. We ship AOSP builds without Google Mobile Services unless you ask otherwise.
How the HG805G differs from sibling models
The HG805G is the only 8 inch rugged model with RK3399 and IP65 in our current line. The WA8058T is also 8 inch, but its spec table shows different options and it is not listed as IP65 rugged. If your project needs a handheld with higher protection, the HG805G is the starting point.
Compare with the HP1012T, a 10 inch tablet, or the WA1036T. Those are larger, likely for desk or wall use. The WL1026T is another 10 inch option. Screen size and form factor drive the choice: the HG805G is handheld, with a USB-A host port, USB-C OTG, micro SD, SIM, and HDMI out. That port set supports field peripherals like external keyboards or a secondary display.
If you need a rugged tablet but a different size, ask us. We cannot promise an IP65 model in every size, but we can say which current models come closest.
