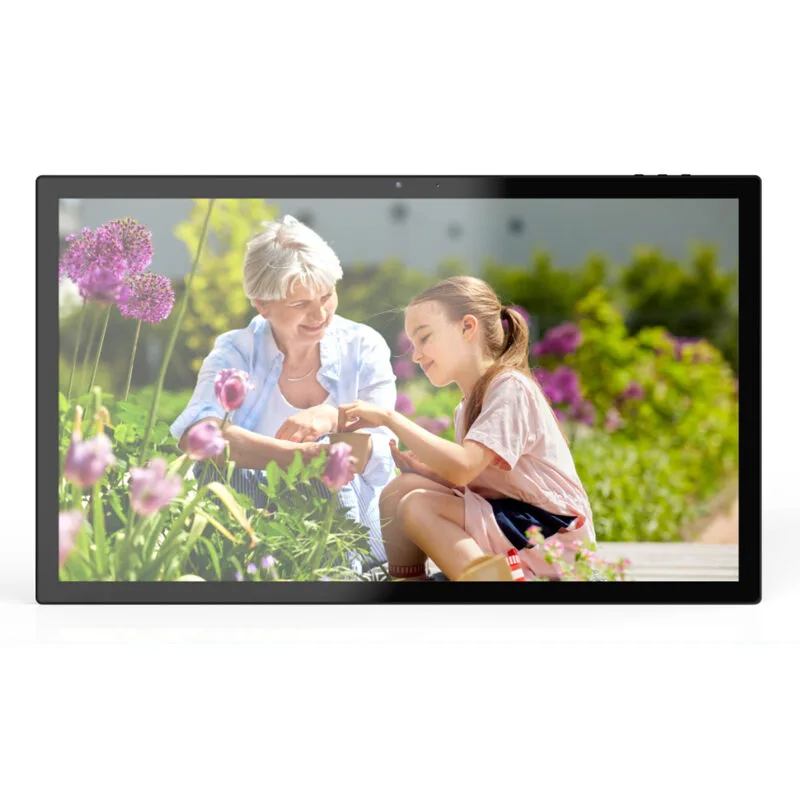

PW-1537T: 15.6 inch Android tablet for room booking, PoE and NFC
Wall mount. RK3288 / RK3566 / RK3568, Android 6.0 or 8.1, 2GB + 8GB. OEM and ODM orders accepted.
- Model
- PW-1537T
- Screen
- 15.6"
- Chipset
- RK3288 / RK3566 / RK3568
- OS
- Android 6.0 or 8.1
- RAM + storage
- 2GB + 8GB
- Resolution
- 1920×1080
- PoE
- Yes
- NFC
- Yes
- Form
- Wall mount
- Minimum order
- 1
PW-1537T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| CPU | RK3288 RK3566 RK3568, Quad-core Cortex A17, 1.6GHz |
|---|---|
| RAM | 2GB |
| Internal Memory | 8GB |
| Operating System | Android 6.0 or 8.1 |
| Touch Screen | 10-Point Capacitive Touch |
| Panel | 15.6" LCD IPS Panel |
|---|---|
| Resolution | 1920×1080 |
| Active Area | 293.76(H)×165.24mm(V) |
| Display Mode | Normally Black, IPS |
| Viewing Angle | 85/85/85/85 (L/R/U/D) |
| Contrast Ratio | 800 |
| Luminance | 250cd/m² |
| Aspect Ratio | 16:9 |
| WiFi | 802.11b/g/n |
|---|---|
| Ethernet | 100M/1000M Ethernet |
| Bluetooth | Bluetooth 4.2 |
| Card Slot | SD Card |
|---|---|
| USB | USB Host |
| Micro USB | Micro USB OTG |
| USB | USB for Serial |
| RJ45 with POE | RJ45 |
| POE | IEEE802.3at/af |
| Power Jack | DC Power Input |
| Earphone | 3.5mm Earphone + Microphone |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
Where the PW-1537T fits and where it does not
The pw-1537t is a 15.6 inch Android tablet made for room booking, with PoE and NFC. It's meant for a wall. The 16:9 panel runs 1920×1080, so signage and scheduling UIs look the way your designer expects. Need more compute? The RK3288, RK3566 or RK3568 options let you pick what a kiosk app or a light web view requires.
This isn't a general desktop tablet. The touch panel is capacitive and 10-point. Fine for taps, not for gloved hands or a stylus workflow. Luminance is 250cd/m², which suits indoor corridors and meeting rooms. Not a sunlit lobby window. If you need a brighter or rugged unit, look at our rugged Android tablets or the larger 21 inch wall-mount tablets.
PoE is IEEE802.3at/af. One cable carries data and power. NFC is 13.56 MHz and can read common tags and cards for check-in. Want a desktop stand or VESA arm? Say so in the RFQ.
What to specify when ordering the PW-1537T
Send us the part number, CPU choice, and Android version. Both Android 6.0 and 8.1 are available. App support differs, so tell us which one your APK targets. We build with AOSP, without Google Mobile Services, unless you ask for a GMS build. Open ADB and a custom launcher are options.
Specify the NFC tag type you plan to read. The reader is 13.56 MHz, but your card or tag format should be listed. Also tell us the PoE standard your switch provides: 802.3af or 802.3at. The power budget changes with the CPU and any USB peripheral.
- CPU: RK3288, RK3566 or RK3568
- Android 6.0 or 8.1, AOSP or GMS
- NFC tag type and card format
- PoE class and whether you need a DC jack fallback
- Housing color and logo position
We answer RFQs within 24 hours. Got a drawing or BOM list? Include it. We'll check it against the spec table before quoting.
How this model differs from our other Android tablets
The pw-1537t is a 15.6 inch model with PoE and NFC listed as standard. Other sizes and form factors are available in our range. Need a truly large display for a corridor or lobby? See our 21 inch wall-mount tablets. The meeting room tablet category shows how the PW-1537T works with scheduling software, and our PoE Android tablet page covers the power side.
If you need a battery, camera or fingerprint reader, please confirm with us whether those options are available for this model. Need a sunlight-readable display? Tell us, but the default panel is 250cd/m².
