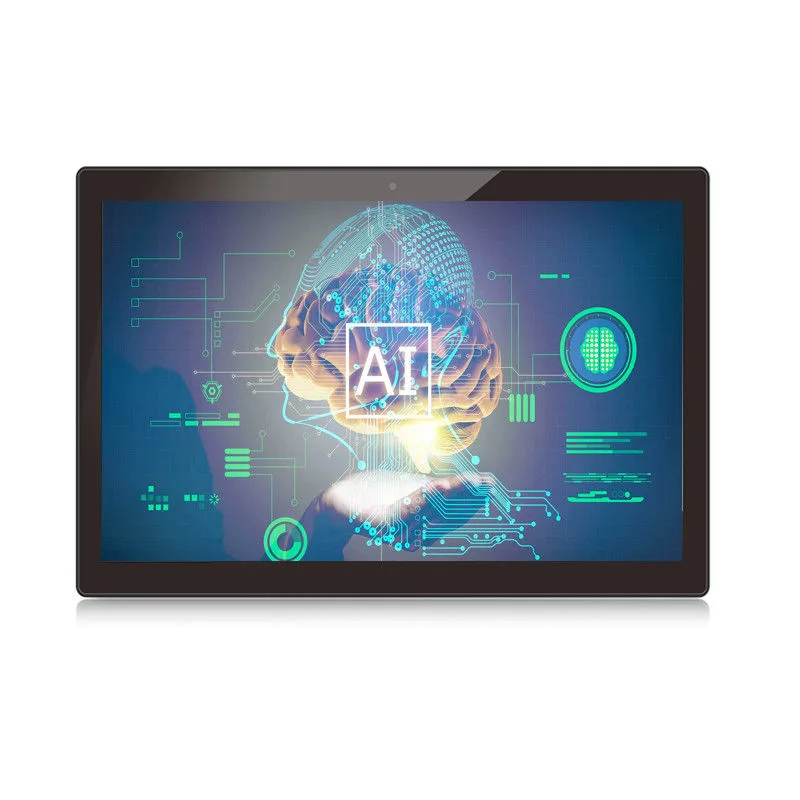

WF2402T: 24 inch RK3288 wall mount Android tablet
Wall mount. RK3288, Android 5.1/8.1, 2GB + 16GB. OEM and ODM orders accepted.
- Model
- WF2402T
- Screen
- 24"
- Chipset
- RK3288
- OS
- Android 5.1/8.1
- RAM + storage
- 2GB + 16GB
- Resolution
- 1920*1080
- Form
- Wall mount
- Minimum order
- 100PCS
WF2402T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| System Specifications | |
|---|---|
| CPU | Quad core cortex A17, 1.6G, RK3288 |
| RAM | 2GB |
| Internal Memory | 16GB |
| Operation System | Android 5.1/8.1 |
| Touch Screen | 10-Point capacitive touch screen |
| Display Specifications | |
|---|---|
| Panel | 24" LCD full HD screen, LED backlight |
| Resolution | 1920*1080 |
| Active Area | 527.04(H) x 296.46mm(V) |
| Viewing Angles | 89/89(H), 89/89(V) |
| Contrast Ratio | 1000 |
| Luminance | 250cdm² |
| Aspect Ratio | 16:9 |
| Network Connectivity | |
|---|---|
| WiFi | 802.11b/g/n |
| 3G Dongle | 3G USB dongle ext. |
| Ethernet | 10M/100M Ethernet |
| Bluetooth | Bluetooth 4.0 |
| Interface & Ports | |
|---|---|
| Card Slot | SD, Support up to 32GB |
| USB Device | Mini USB OTG |
| USB Host | USB Host 2.0 x2 |
| Power Jack | DC power input |
| RJ45 | Ethernet |
| HDMI | HDMI output |
| Earphone | 3.5mm earphone |
| Media Playback | |
|---|---|
| Video Format | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 4K |
| Audio Format | MP3/WMA/AAC etc. |
| Photo | JPEG |
| Additional Features | |
|---|---|
| Power Consumption | 35W |

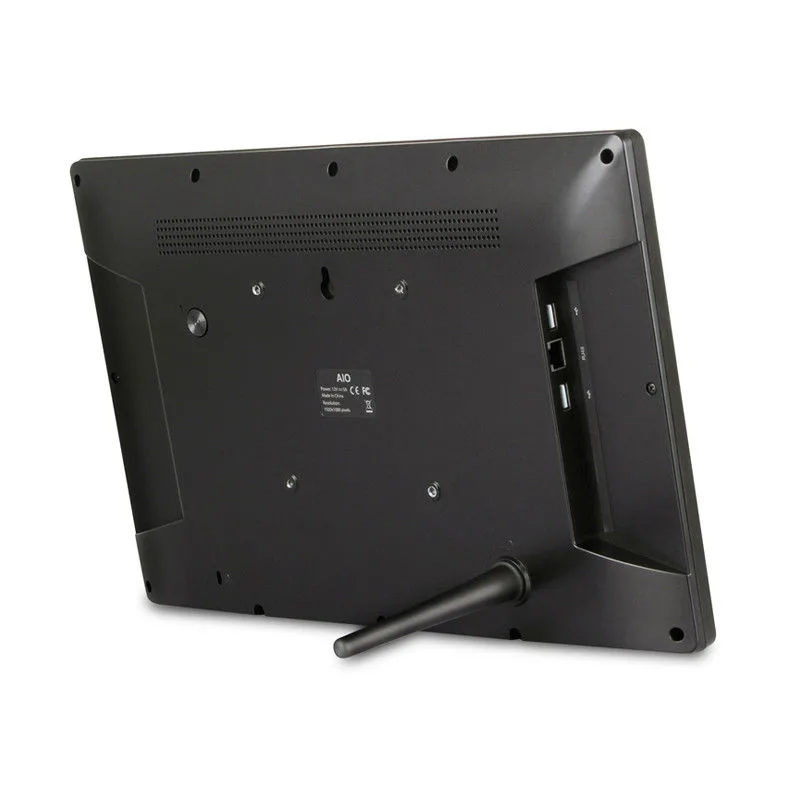

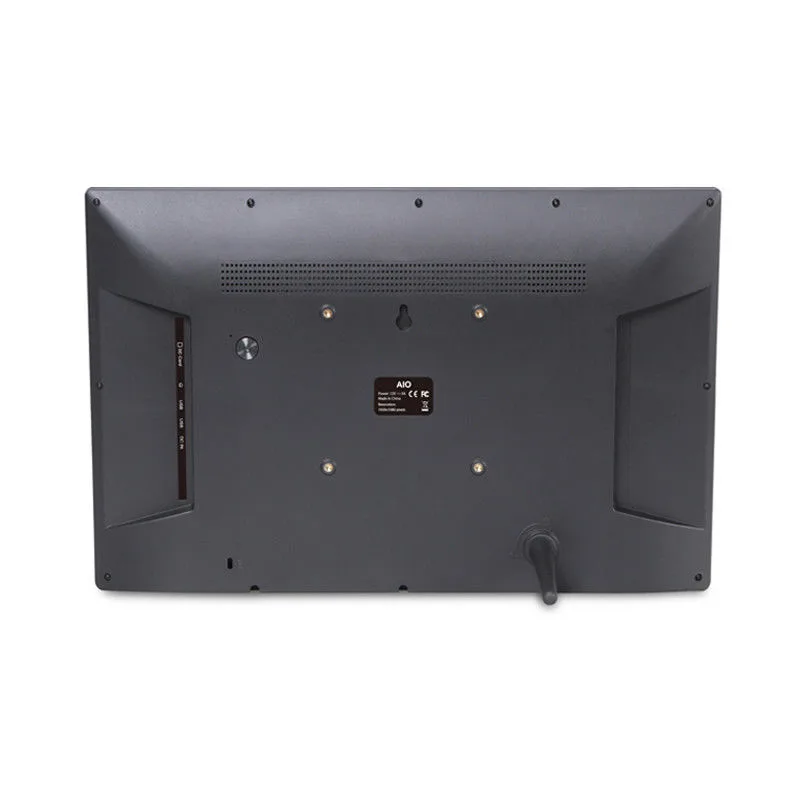

| Wall Mounting | VESA, 100x100mm |
| Speaker | 2*3W |
| Camera | N/A |
| Language | Multi-language |
| Working Temperature | 0-50°C |
| Adapter | Adapter, 12V, 4A |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
Where WF2402T fits and where it does not
The WF2402T is a 24 inch RK3288 wall mount Android tablet. It's built for fixed installations where a bigger readout matters more than mobility. Think lobby directories, room schedulers, kiosk front panels, production dashboards. The RK3288 quad core A17 runs at 1.6G with 2GB RAM and 16GB storage. That's comfortable with a single full screen app, moderate web content, and 1080p video. It's not a workstation. Planning to run several heavy apps side by side or need 4K UI rendering? Step up to a newer Rockchip platform in our 24 inch Android tablet range.
It runs Android 5.1 or 8.1 without Google Mobile Services by default. So you control the launcher and the app set. That suits dedicated kiosk and signage roles. But you need to plan your own OTA or sideload strategy if the device sits behind a locked down network. The VESA 100x100 mount and 35W power draw keep installation simple. There's no battery and no camera, so don't spec this model for handheld or video call use.
Compare sibling models before you commit. The WA8058T is a smaller 8 inch panel for tighter spaces. The HP1012T is a 10 inch option for lighter duty. Need a larger wall mount with similar mounting? See the WL1026T and WA1036T for 10 inch alternatives with different I/O.
What to specify when ordering the 24 inch RK3288 wall mount Android tablet
Send us the exact Android version you need, 5.1 or 8.1, and whether you want the build with or without Google Mobile Services. Most integrators ask for a clean AOSP image. ADB enabled, custom launcher preloaded. If you already have an APK, include it with your RFQ and state the default orientation, auto boot behavior and any kiosk lockdown settings.
For the WF2402T, confirm the ports you actually use. The board has two USB 2.0 host ports, one Mini USB OTG, HDMI output, a 3.5mm earphone jack, a 10M/100M Ethernet port and an SD slot up to 32GB. If your deployment depends on a 3G USB dongle, tell us the dongle model. We need to check driver support before you buy a hundred units.
Also specify the power environment. The included adapter is 12V, 4A, and the panel draws 35W. That's easy for most AV racks, but if you're doing a large wall of these, plan your DC distribution or AC outlet count accordingly. Wall mounting uses VESA 100x100. You can use standard brackets or ask us to include a basic fixed mount. We answer inquiries within 24 hours.
How WF2402T differs from sibling models
Screen size and resolution set them apart. The WF2402T gives you 24 inches, 1920x1080, 250 cd/m² luminance, and 89 degree viewing angles every way. It's a step up from our 10 inch Android tablets and 15 inch Android tablets. Same RK3288 platform as some smaller models, though. Light app? You get a much bigger canvas for the same software effort.
Brightness matters. At 250 cd/m², this panel's for indoor use with controlled lighting. A sunny lobby window or bright retail front will wash it out. Our 24 inch Android tablet category has other models with different panels. Check the luminance spec before you choose. Contrast ratio's 1000. Fine for text and simple graphics, not for high dynamic range content.
The I/O set's specific too. HDMI output's there, handy if you want to mirror to a larger display. Plus a 3.5mm earphone jack for private audio. No RS232, no GPIO on this model. Need PoE? Ask us about PoE options or look at our PoE Android tablets. For rugged or semi-outdoor use, see our rugged Android tablets instead.
