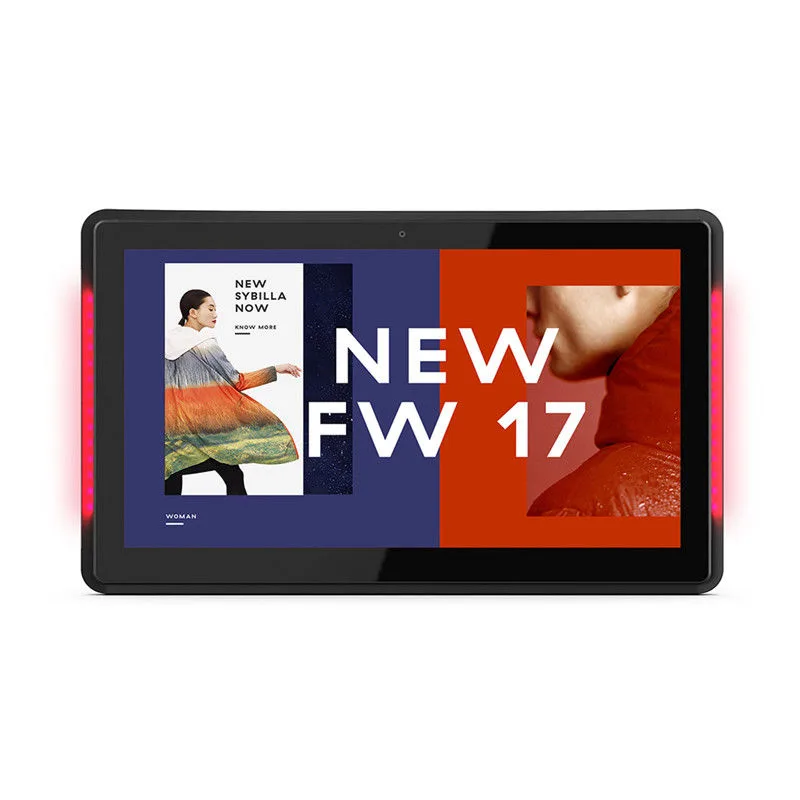

HP1012T: 10.1 inch wall mount PoE Android tablet
Wall mount. Android 5.1. OEM and ODM orders accepted.
- Model
- HP1012T
- Screen
- 10.1"
- OS
- Android 5.1
- Resolution
- 1280*800
- PoE
- IEEE802.3at/af
- Form
- Wall mount
- Minimum order
- 100PCS
HP1012T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| Type | IPS |
|---|---|
| Viewing Angle | 85/85/85/85(L/R/U/D) |
| Pixel Pitch | 0.264mm |
| Contrast Ratio | 800:1 |
| Brightness | 300 Nits |
| Response Time | 5ms |
| Input Voltage | 12V/1.5A |
| Resolution | 1280*800 |
| Luminance | 300cdm2 |
| SD Card Slot | SD Card(Max 32GB) |
| Speaker | Built In Speaker 1x 2w |
| System | Android 5.1 |
| WiFi | 802.11b/g/n |
| Mini USB | USB OTG |
| rj45 With POE | Yes |
| POE | IEEE802.3at/af |
| Single Package Size | 53X24.3X32 Cm |
| Single Gross Weight | 6.500 Kg |
| Package Type | Carton: 10pcs/CTN GW : 7kg |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
Where the HP1012T fits and where it does not
The hp1012t is a 10.1 inch wall mount PoE Android tablet. Built for fixed installs that need a clean single-cable run for power and data. It suits meeting room schedulers, smart home panels, and light room control. The IPS panel gives wide viewing angles. 300 nit brightness works in most indoor spots away from direct sun.
We don't pitch it for outdoor kiosks, direct-sun storefronts, or heavy industrial enclosures. Need higher brightness or a larger display? Check our 10 inch options or the 13 inch series.
A buyer who needs a wall mount panel with PoE but no touch would find this model over-specified. Say you need a display only. We can talk about a different build. But the HP1012T shines when the project calls for a fixed Android panel with Ethernet.
What to specify when you order the HP1012T
Your RFQ should state the OS build you need. The HP1012T ships with Android 5.1 by default. Need Google Mobile Services, open ADB, or a custom launcher? Tell us. These choices affect the firmware we flash before packing.
Confirm the PoE standard your switch provides. The tablet accepts IEEE802.3at/af, so a standard 802.3at switch or injector works. If you plan to use a passive PoE injector, say so; we can advise whether it will power this model. The RJ45 port with PoE is built in. No external splitter is needed.
For mounting, the HP1012T is a wall mount form factor. Send us your wall box or bracket dimensions if you have a specific back box. Custom cutouts or a different housing color are OEM options. Also list any preloaded apps or boot animation you want.
HP1012T versus sibling models
The HP1012T is one of several 10.1 inch Android tablets we make. It differs from the WA8058T mainly in PoE and mounting. The WA8058T sits on a desk or L-shape. The HP1012T is wall mount only. Need a desk stand? Choose the WA8058T.
Compared to the WA1036T, the HP1012T offers a different feature set. It's adequate for typical indoor corridors and meeting rooms. For a ruggedized build, the WH1018T may be a better fit. Depends on your requirements.
The WL1026T is a similar wall mount model. Check the spec table on that page. If your project uses a Power over Ethernet switch as the sole power source, the HP1012T is the simpler choice. Why? PoE is native to the model.
