XR101T: 10.1 inch wall mount Android signage tablet
Wall mount. Android, 2GB+16GB. OEM and ODM orders accepted.
- Model
- XR101T
- Screen
- 10.1"
- OS
- Android
- RAM + storage
- 2GB+16GB
- PoE
- Optional
- NFC
- Optional
- Form
- Wall mount
- Minimum order
- 2
XR101T specifications
Values as listed for the standard configuration. RAM, storage, OS version and peripherals are configured per order.
| Weight | 500g |
|---|---|
| Camera | 5MP Front Camera |
| Viewing Angle | 89 /89 /89 /89 (L/R/U/D) |
| Speaker | 2*5W |
| Screen Panel | Lcd Panel |
| Memory | 2GB+16GB |
| Type | Commercial Tablet PC, Industrial Tablet Computer |
| Luminance | 300cd/m2 |

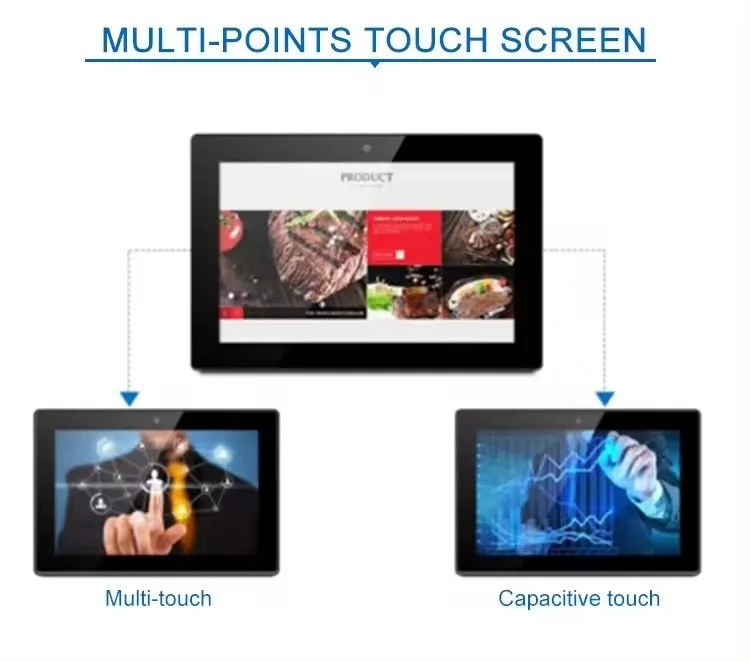

| Touch | 10-Point Capacitive Touch |
| Use | Digital Signage Display Shopping Mall Retail Stores |
| Optional Functions | POE Power NFC |
Configured per order
RAM and storage tier, Android version within the chipset range, PoE, NFC, camera and 4G are set when the order is placed. The table shows the listed standard configuration.
Software
Standard AOSP Android. Custom launcher, boot logo, preloaded apps, open ADB and builds without GMS are available through OEM firmware.
Specify these in your inquiry
- RAM and storage tier. Several models list two tiers.
- Android version. It follows the chipset, see the OS column.
- PoE, NFC, camera, 4G: optional on many models.
- GMS or AOSP, launcher lock-down, ADB access.
- Housing color and logo method.
- LCD products carry a 1 year warranty.
XR101T: where this 10.1 inch wall mount Android signage tablet fits
The xr101t is a fixed-position 10.1 inch panel built for retail shelf edges, shopping mall directories, and simple retail store signage. It runs Android with 2GB+16GB memory. That's enough for a custom launcher, one or two apps, and a rotating image or video loop. The 10-point capacitive touch and 5MP front camera cover basic interaction and presence detection.
It fits where you need a clean wall mount and don't want a floor stand or desktop L-shape. The luminance works in indoor ambient light; avoid direct sunlight or bright window walls. The viewing angle keeps the screen readable from wide angles. That matters in a corridor or above a shelf. The optional POE power and NFC mean you can plan a single-cable install and tap-to-configure deployments.
This model isn't a high-brightness outdoor panel, not a 13-inch or larger meeting room display, and not a rugged handheld. Need IP-rated sealing or a bigger screen? Look at our 13 inch Android tablets or the rugged Android tablet series.
What to specify when you order the XR101T
Send us the deployment details in your RFQ: mounting surface and wall type, cable entry position, ambient light level, and the app or launcher you'll run. Tell us if you need POE so we quote the correct SKU. POE's optional on this model and follows IEEE802.3at/af. If you want NFC, specify the tag standard and the use case, like tap-to-pair or tap-to-open.
We build the xr101t as an OEM/ODM device. Put your logo on the front, set a boot animation, preload your APK, change the default launcher. Custom firmware changes are possible, including open ADB and builds without Google Mobile Services. But you should send us your app, your mounting CAD, and your acceptance criteria. We answer within 24 hours.
For a typical retail store or shopping mall rollout, you'll also want to plan power budgeting. POE simplifies wiring but you must confirm the switch class. Power consumption depends on configuration. The 2*5W speakers can play audio for attention, but they're not a PA system. Specify audio level expectations in the RFQ.
How the XR101T differs from sibling models
The xr101t is a wall mount 10.1 inch Android signage tablet. Compare it with the WA8058T, similar in size, but the mounting and IO arrangement differ. The HP1012T and WA1036T are also 10.1 inch. But we position the xr101t for fixed signage with optional POE and NFC. The WL1026T is a different form factor. So if you're choosing between them, focus on mounting and cable routing.
Don't expect the xr101t to behave like a larger meeting room tablet or a medical information terminal. The spec table doesn't list a battery, IP rating, or VESA pattern. It's a signage panel with touch, not a general purpose Android tablet. If your application needs a desktop touch screen for a POS, look at the Android POS line instead.
We make this model in our Longhua facility. Every finished unit is inspected for appearance and function. The ISO 9001 scope covers LCD monitors, touch monitors, Android all-in-one PC, and advertising machines. CE, FCC and RoHS are issued per model. Confirm the specific certificates for your region before you import.
